| Specification | Value |
|---|---|
| Constellation | GPS, Galileo, SBAS, QZSS, GLONASS or BeiDou |
| Output Signal Level | Adjustable from -73 dBm to -103 dBm |
| RF Constellations |
|
| RF ConstellationCentre Frequency | 1575.4 / 1602.00 / 1561.098 MHz GPS&GALILEO / GLONASS / Beidou |
| Number of Satellites Observed | All in view |
| Sampling frequency | 16.368 MHz |
| Bandwidth | 9.66 MHz |
| Quantisation |
|
| Data Format | I & Q |
| User Control | 6 Button Membrane Keypad |
| Display | Backlit LCD Dotmatrix |
| Additional Logging |
|
| Removable Battery Pack | Single Constellation:Record & Replay version onlyDual and Triple Constellation:Both versions |
| Battery Type | Varta Easypack Li_Polymer 2260 mAh |
| Media Storage Included | 32 GB SD Card & 1 TB USB HDD |
| SD Card Media | Class 10max size 128 GB (FAT32) |
| Active Antenna Voltage Supply | 2.80 – 3.0 Volts |
| Reference Oscillator | 16.368 MHz Temperature controlled +/- 2.5 ppm or OCXO option+/- 0.3 ppm |
| Operating Voltage | 8 V to 30 V DC |
| Power Consumption | Power <16 W |
| Size | 167 mm x 128 mm x 43 mm |
| Weight | 960 g with battery (910 g without battery) |
| Operating Temperature | -20°C to +60°C, the unit will shut down in conditions outside the operating temperature range. |
| Storage Temperature | –20°C to +60°C |
BATTERY NOTES
- The battery will not charge if the ambient temperature is below 0°C or above +45°C (the charger will shut down outside this range).
- The battery will discharge whilst in storage and the discharge rate will increase at higher storage temperatures.

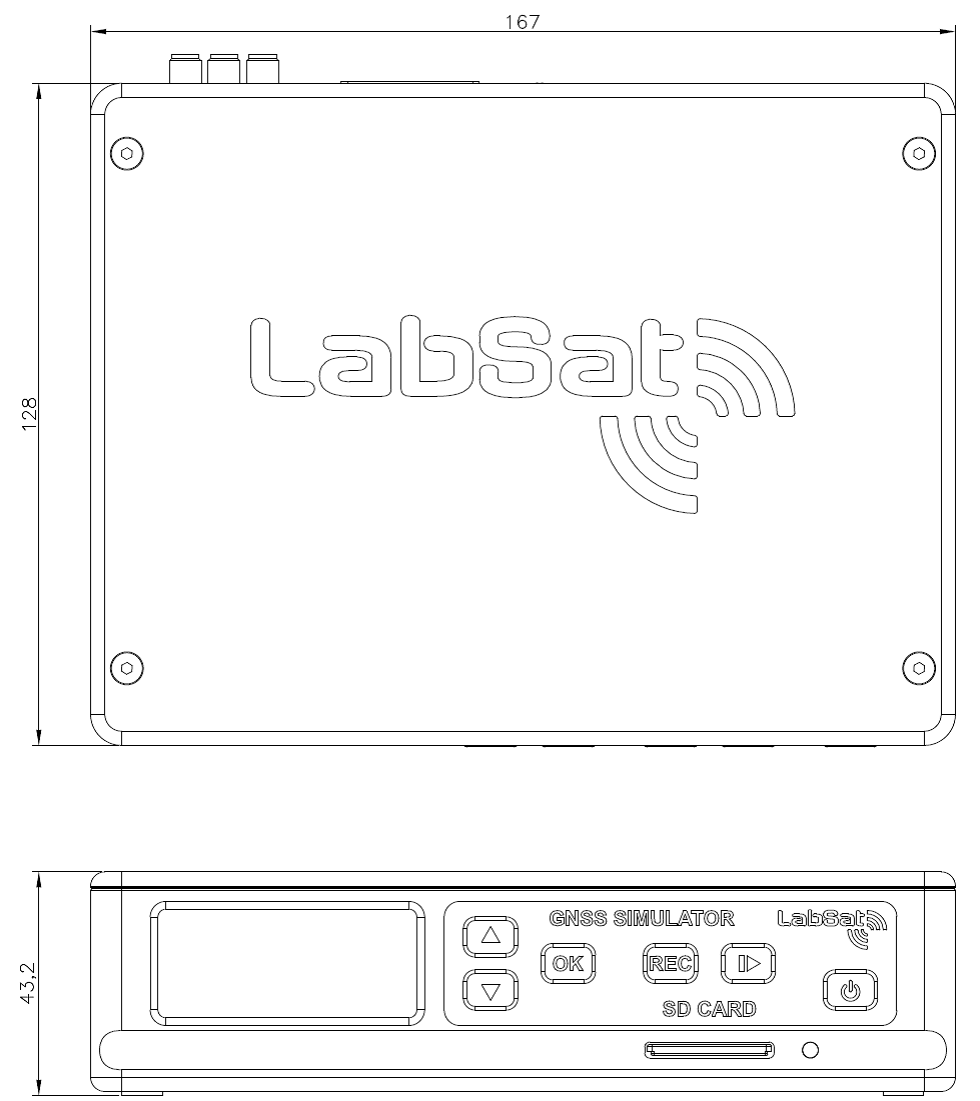

The following is a diagram of LabSat 3 showing the dimensions in millimetres.
