VBOX LapTimer RLVBLAP-(R/S) consists of a 25 Hz GNSS data logger and predictive lap timer display all in one unit, with the connectors mounted either on the side or on the rear panel.
The VBOX LapTimer compares your previous best lap to the lap you are currently driving based on position rather than distance, which is far superior on longer tracks. It provides instant driver feedback, helping you see where to improve your time.
In addition to the delta time display, the VBOX LapTimer features an array of 6 LEDs that indicate your speed relative to your fastest lap.
It provides instant feedback to help drivers identify where time is being lost and where they can gain time around a lap.
VBOX LapTimer RLVBLAP-(R/S) consists of a 25 Hz GNSS data logger and predictive lap timer display all in one unit, with the connectors mounted either on the side or on the rear panel.
The VBOX LapTimer compares your previous best lap to the lap you are currently driving based on position rather than distance, which is far superior on longer tracks. It provides instant driver feedback, helping you see where to improve your time.
In addition to the delta time display, the VBOX LapTimer features an array of 6 LEDs that indicate your speed relative to your fastest lap.
It provides instant feedback to help drivers identify where time is being lost and where they can gain time around a lap.
- Accurate to 100th of a second
- Uses position, not distance, for unrivalled accuracy
- Delta-V LED indicators
- 25 Hz data logging to SD card
- View parameters such as live speed, max speed, g-force, lap times and predicted lap times
- Static/rolling lap times and lap counter
- Supplied with external GNSS antenna
- Easy operation: three buttons to scroll display screens, set start/finish points, reset data, start/stop logging, and navigate menus
- Motorsport-standard Lemo connectors
- Low power consumption: < 2 W
- Internal accelerometer: flips display according to the mounting position
- Multiple Mounting methods depending on the variant

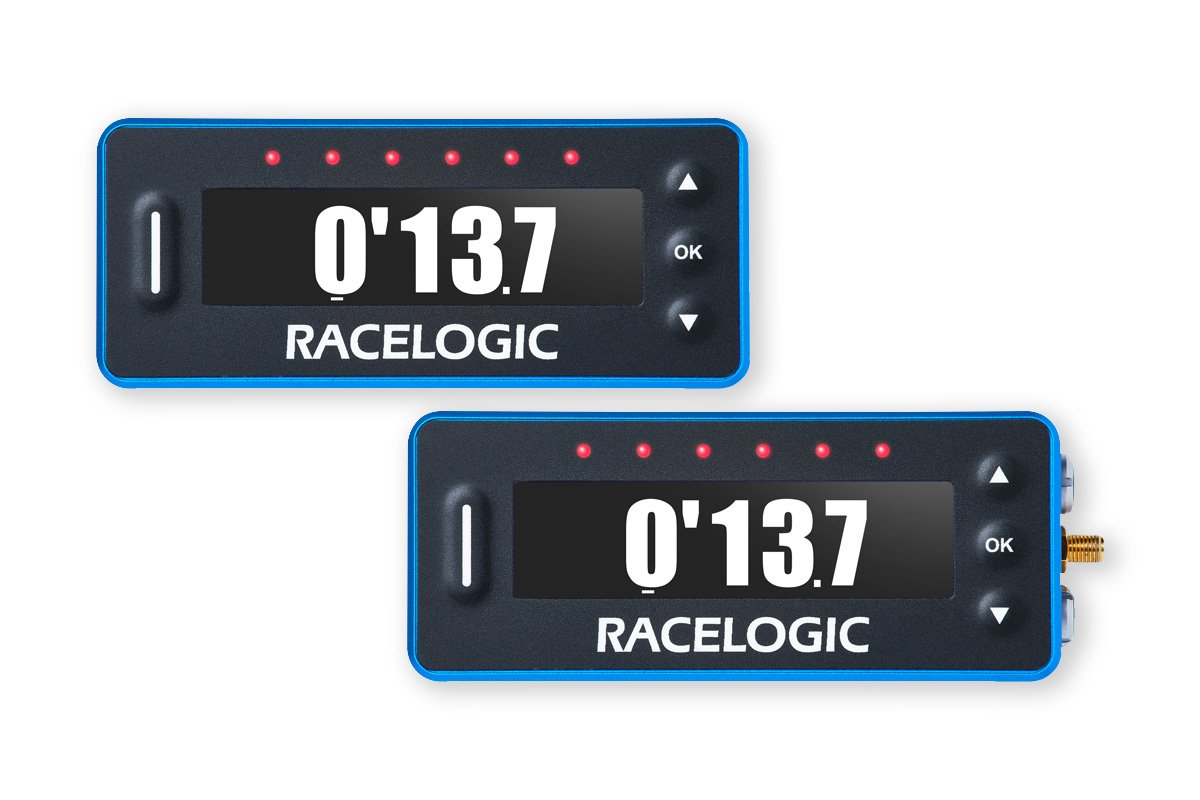

There are two hardware variants of VBOX LapTimer: VBOX LapTimer with Side Connectors and VBOX LapTimer with Rear Connectors.
Both variants share the same display, logging, and operational features. The primary differences are the connector position, overall dimensions, and the mounting or installation arrangements supported by each unit.
VBOX LapTimer with Side Connectors
VBOX LapTimers with Rear Connectors

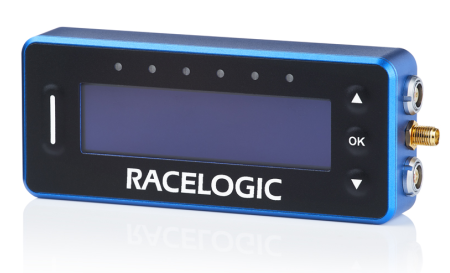

The RLVBLAP-S uses side-mounted connectors, making cable access easier when the unit is frequently moved between vehicles or installations.

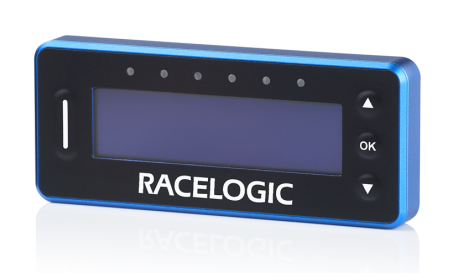

The RLVBLAP-R features rear-mounted connectors, allowing for a slimmer installation profile that is better suited to fixed or permanent installations.
Is your VBOX LapTimer version not mentioned above?
If you have an older version of the VBOX LapTimer, refer to the Legacy Product section for more information.
