| Specification | Value | Notes |
|---|---|---|
| Accuracy | 0.18 km/h | 50% @ 30 m/s |
| Units | km/h or mph | |
| Update Rate | 10 Hz | |
| Max velocity | 1800 km/h | |
| Min. Velocity | 0.1 km/h | |
| Resolution | 0.01 km/h |
| Specification | Value | Notes |
|---|---|---|
| 2D Position | 2.5 m | CEP (Circle of Error Probable), 50%, 24 hours static, -130 dBm, > 6 SVs |
| Height | ± 5 m |
NOTE
CEP = Circle of Error Probable – 95% CEP means 95% of the time the position readings will fall within a circle of the stated radius.
| Specification | Value |
|---|---|
| Accuracy | 0.5% |
| Maximum | 4 g |
| Resolution | 0.01 g |
| Specification | Value |
|---|---|
| Resolution | 0.01° |
| Accuracy | ± 0.3° |
| Specification | Value |
|---|---|
| IP Rating | IP65 rating |
| Operating Temp | – 20°C to + 70°C |
| Power | < 1.5 W |
| Input Voltage | 7 to 30 V DC |

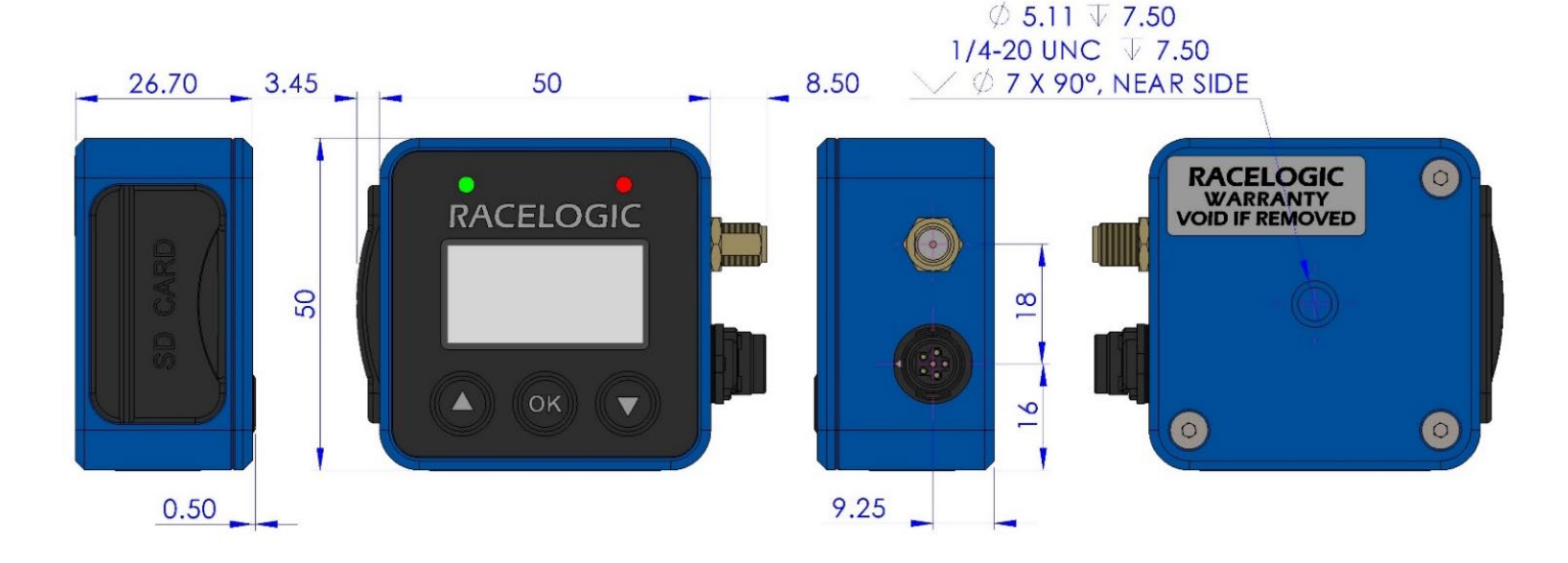

| Specification | Value |
|---|---|
| Weight (excluding cables and accessories) | 103 g |
| Dimensions (excluding connectors) | 50 x 50 x 26.7 mm |
- 1x HR30 6w socket (Power & Data)
- 1 x SMA socket (GNSS Antenna)
