As you enter and exit the pit lane, the LEDs will come on and flash blue when you are crossing the gates.
As you enter and exit the pit lane, the LEDs will come on and flash blue when you are crossing the gates.

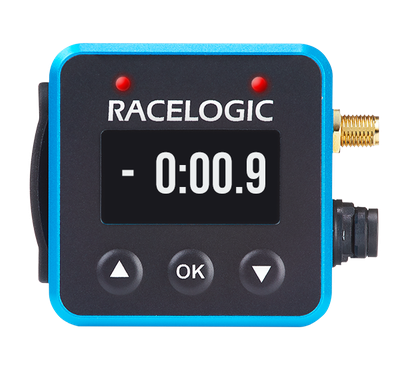

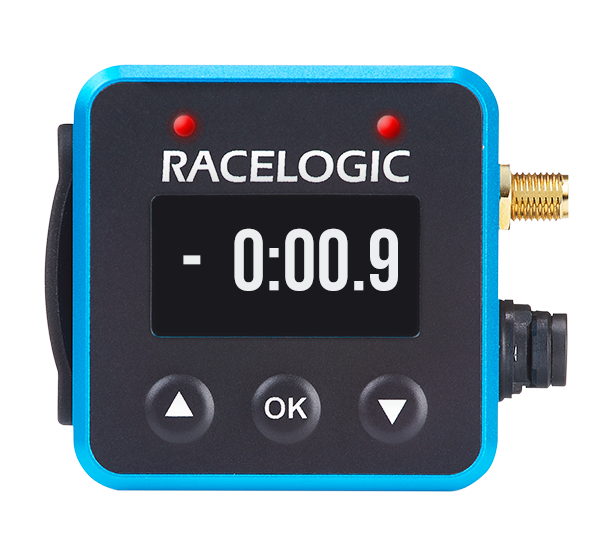

While in the pit lane, the LEDs come on red to indicate that you are approaching the pit lane speed limit.
While in the pit lane, the LEDs come on red to indicate that you are approaching the pit lane speed limit.
While in the pit lane, the LEDs come on green to indicate that you can increase your speed.
While in the pit lane, the LEDs come on green to indicate that you can increase your speed.
When you stop in the pit box, the unit starts a countdown indicating when to leave the pit box. During the countdown, the LEDs remain off.
When you stop in the pit box, the unit starts a countdown indicating when to leave the pit box. During the countdown, the LEDs remain off.
When the countdown reaches 0.00, the LEDs come on green to indicate that it is time to leave the pit box.
When the countdown reaches 0.00, the LEDs come on green to indicate that it is time to leave the pit box.

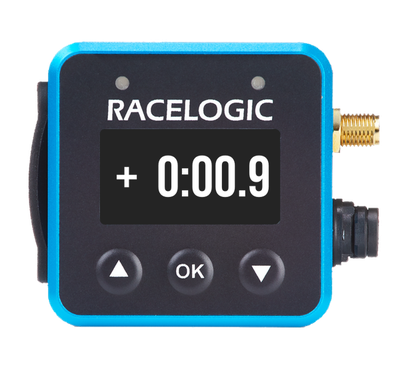

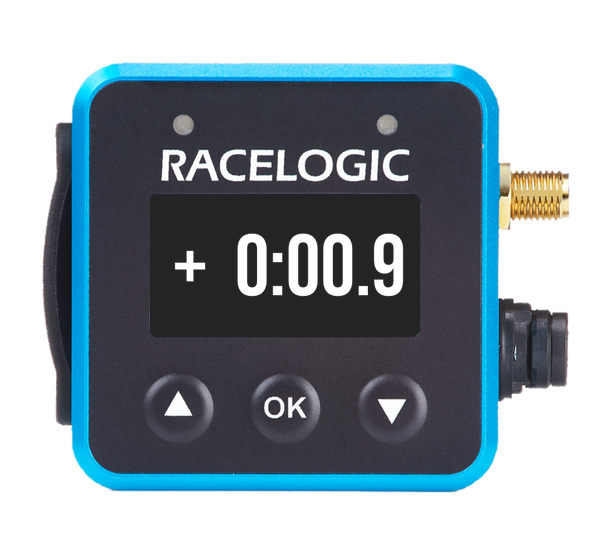

While driving in the pit lane, the Mini Pit Lane Timer indicates whether your current speed will cause you to reach the pit exit too early or too late based on the configured settings:
RED - Slow Down | OFF - Maintain Speed | GREEN - Speed Up |
NOTE
When the LEDs come on red, the Pit Lane Timer also sounds a continuous beep to indicate that you are likely to reach the pit exit too early.
When you cross the Exit gate, the Mini Pit Lane Timer will display the final difference compared with the desired pit lane time.
The LEDs will light green if the final pit lane time is within the minimum pit stop time boundary.
The LEDs will light green if the final pit lane time is within the minimum pit stop time boundary.
The LEDs will light red if you did not meet the minimum pit stop time.
The LEDs will light red if you did not meet the minimum pit stop time.
