Overview

Updated on May 28, 2026

The Racelogic Brake Pedal Trigger (RLVBACS004) enables precise measurement of brake pedal application during VBOX brake stop tests.

The trigger completes a circuit which pulls a floating 5 V output to ground when pressed, with the exact time this event occurred being captured and recorded by the VBOX at a high sampled frequency. The frequency at which the trigger event is recorded is dependent on the model of VBOX in use.

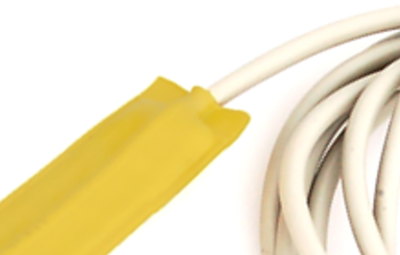

Photograph of Brake Trigger.

The Racelogic Brake Pedal Trigger (RLVBACS004) enables precise measurement of brake pedal application during VBOX brake stop tests.

The trigger completes a circuit which pulls a floating 5 V output to ground when pressed, with the exact time this event occurred being captured and recorded by the VBOX at a high sampled frequency. The frequency at which the trigger event is recorded is dependent on the model of VBOX in use.

Photograph of Brake Trigger.
Photograph of the Racelogic Brake Trigger next to a ruler for scale.
Photograph of the Racelogic Brake Trigger in place within a vehicle.
Photograph of the Racelogic Brake Trigger next to a ruler for scale.
Photograph of the Racelogic Brake Trigger in place within a vehicle.
