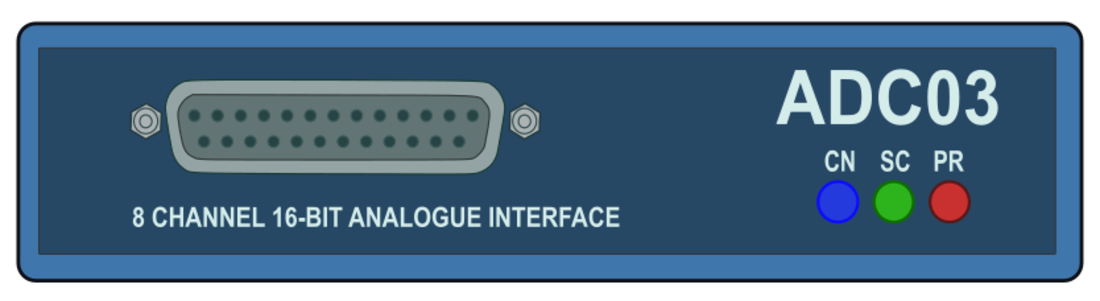

ADC03 is an 8-channel 16 bit analogue voltage interface for use with Racelogic VBOX, Video VBOX and third party data loggers.
Each channel is electrically isolated and provides bipolar voltage measurement with a DC accuracy of ±2 mV.
TIP

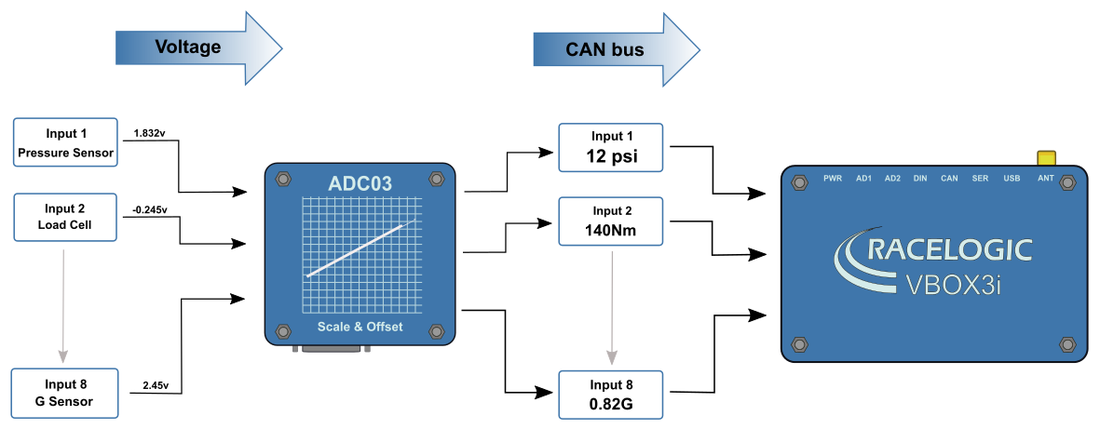

VBOX Setup software supplied with ADC03 allows scale and offset of the voltage reading for conversion into real data.
WARNING
Fit an in line 100 mA fuse when using +vbatt pin on 25 way connector to power sensors. Failure to do this could result in damage to the ADC03 and VBOX
- Voltage input ±50 V
- 16 bit Resolution
- ±2 mV DC accuracy
- Synchronous sampling of all channels
- Bi-polar voltage input
- Internal scale + offset for conversion to real data
