- Improved styling.
- Ability to select Map Source in Options.
- Bing, Google or Amap are the available Map Sources. Bing is the default. Amap is popular in China.
- Increased maximum zoom level when using satellite image.

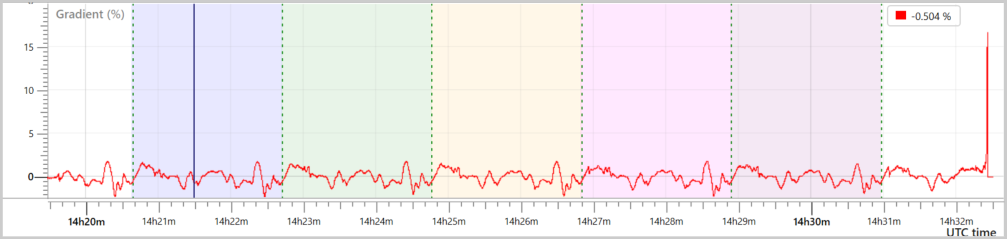

- A Gradient channel is now available.
Gradient is calculated using the following formula:
Vertical Velocity
Speed
× 100
- CSV export now includes the trigger channel.
- Fixed an issue that prevented EURO NCAP CCRs tests from running without a target speed channel.
- Fixed an issue loading files with Zero Brake Force Channel selected.
- Fixed missing data values for elapsed time in CSV export.
- Fixed an issue with the centreline deviation calculation on runs that crossed UTC midnight.
- Fixed performance issue when loading files with Mining plugins.
- Fixed an issue that prevented certain interim conditions from displaying a value in .VBB files with CAN data.
- Fixed an intermittent issue that prevented CAN data from showing in a chart gauge.
Version 1.1 of the VBOX 4 Firmware is now available to all existing customers.
Version 1.1 introduces powerful new features and enhancements designed to make testing easier, faster, and more versatile.
What’s New in v1.1
- CAN FD channels can now be logged alongside full bus logging:
- Display CAN FD channels on MFD Touch and VBOX Test Suite.
- Log CAN FD channels directly to the VBB file.
- 32 channels available on CAN FD 1 and CAN FD 2 (64 total).
- Log CAN FD to VBB and ASC file simultaneously.
- Humanetics Ethernet output:
- Ethernet connection directly to the robot interface.
- The ADAS Audio Sensor can now be connected as a Racelogic Module via the RLCAN port on VBOX 4:
- Recognised as a module for configuration in VBOX Setup.
- Built-in support and calibration for the Wireless Wheel Speed Sensors:
- Sensors can now be calibrated directly in VBOX Setup.
- Connect the Wireless Wheel Speed Sensors as Racelogic Module via the RLCAN port on VBOX 4.
- Pass-by Noise testing updates:
- Now with track temperature capture.
Click on one of the older versions of VBOX Test Suite below to view the release notes.
