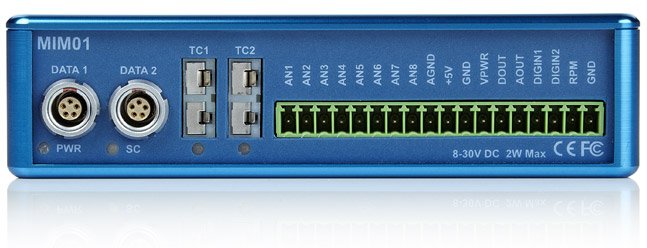

The Mini Input Module (MIM) (RLVBMIM01) is a general-purpose input/output module that you can use with VBOX data loggers to measure data, such as temperature, RPM, wheel speed, fuel flow, throttle angles and pedal forces, alongside the VBOX GNSS data.
The module can accept 8 analogue inputs, 2 digital inputs, an additional digital state input for event marking, and 2 K-type thermocouple inputs.
When used with a VBOX Mini, the MIM can also output 1 digital and 1 analogue signal. Connections are via a removable screw terminal.
